Märklin No

Märklin Article Name

Last märklin Price(RRP) Year

Last märklin € Price(RRP)

KOLL Price Book Year

KOLL € Value Estimate

Catalog Year(s)

Railway Company

Nationality

Era

Locomotive and/or Car Numbers

Text on Locomotive or Cars

Scale

Housing

Colour(s)

Length

Minimum radius

Couplers

Technology

Light

URL to www.maerklin.de

Notes

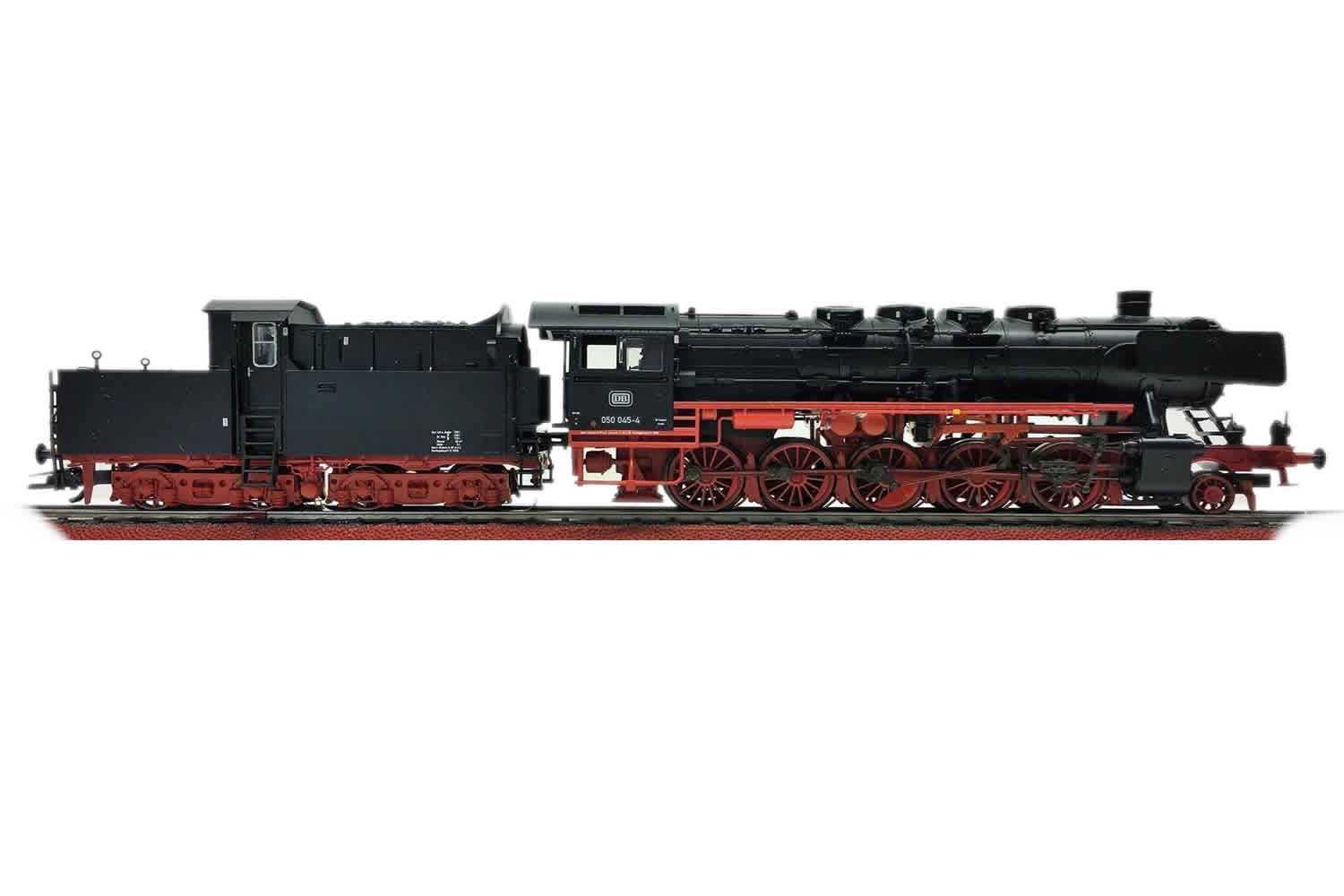

German Federal Railroad (DB) class 050 steam freight locomotive with a cabin tender. Witte smoke deflectors, 4 boiler domes, shortened running boards, DB Reflex glass lamps, and inductive magnets. Locomotive road number 050 045-4. The locomotive looks as it did around 1970.

(Source: Märklin)
The class 50 locomotive came into being shortly before the start of World War II as the last of the so-called standard design steam locomotives. In April of 1937 the German State Transportation Ministry ordered the German State Railroads central office (RZA) to develop a powerful freight locomotive for branch lines as a replacement among other things for the class 57.10-40 (Prussian G 10) 0-10-0 freight steam locomotives. They were planned to haul a medium freight train on level terrain, be able to negotiate curves with a radius of 140 meters / approximately 455 feet, and be usable with a 15 metric ton axle load on branch lines with light roadbed. A speed of 80 km/h / 50 mph appeared sufficient. Since many terminal stations had no turntable or the ones available were too short, these units had to be able to go equally fast in both directions. A protective wall for the tender was therefore planned to protect the locomotive crews. The RZA initially planned a 2-8-0 locomotive (class 46) because it was felt a 2-10-0 locomotive could not be trusted with the required high speed in reverse nor with the required drawbar performance. A 2-8-0 unit could not achieve the required axle load and the design remained a locomotive with five driving axles and a pilot truck. From April to July of 1939 Henschel built the first twelve locomotives with steel fireboxes, alloy steel as the material for the boilers, two-cylinder superheated steam running gear with a Wagner super heater, and 16 bar / 232 pounds per square inch boiler pressure. The class 50 thus developed was shortly destined to become the German State Railroads most successful design, because this locomotive with its approximately 1,600 horsepower and 80 km/h / 50 mph speed quickly became a general-purpose, sturdy, reliable unit. The outbreak of war on September 1, 1939 caused a leap in the demand for freight locomotives, and the twelve pre-production locomotives were followed by another 3,152 units over the course of the next few years. Almost all of the European locomotive builders participated in the construction of these locomotives. Like the class 44, the class 50 was also simplified over the course of World War II so that locomotives were delivered starting in 1942 as the class 50 ÜK. Over 300 units were finally so simplified that they were designated as the class 52 wartime locomotive although they were originally planned as the class 50. Despite numerous losses during the war, there were almost 3,000 locomotives on the two German railroads after 1945. The DR had over 317 after transfers and retirements, and the DB had more than 2,000 units. The DB units were at home all over the German Federal Republic. They were equipped with Witte smoke deflectors, and the running board skirting was removed on most of the units. Starting in 1961, the tenders of 730 locomotives were equipped with cabins for the train crews in the course of rationalization and updating of service and operations. This reduced the coal capacity to 6.6 metric tons. The lower weight made these units more versatile and they replaced the tank locomotives in use on many branch lines. The introduction of computer numbers starting in 1968 turned the class 50 into the classes 050-053. They were among the German Federal Railroads last steam locomotives and were in service until 1977.
