Märklin No

Märklin Article Name

Last märklin Price(RRP) Year

Last märklin € Price(RRP)

KOLL Price Book Year

KOLL € Value Estimate

Catalog Year(s)

Railway Company

Nationality

Era

Locomotive and/or Car Numbers

Text on Locomotive or Cars

Scale

Housing

Colour(s)

Length

Minimum radius

Couplers

Technology

Light

URL to www.maerklin.de

Notes

Switch Engine Double Set

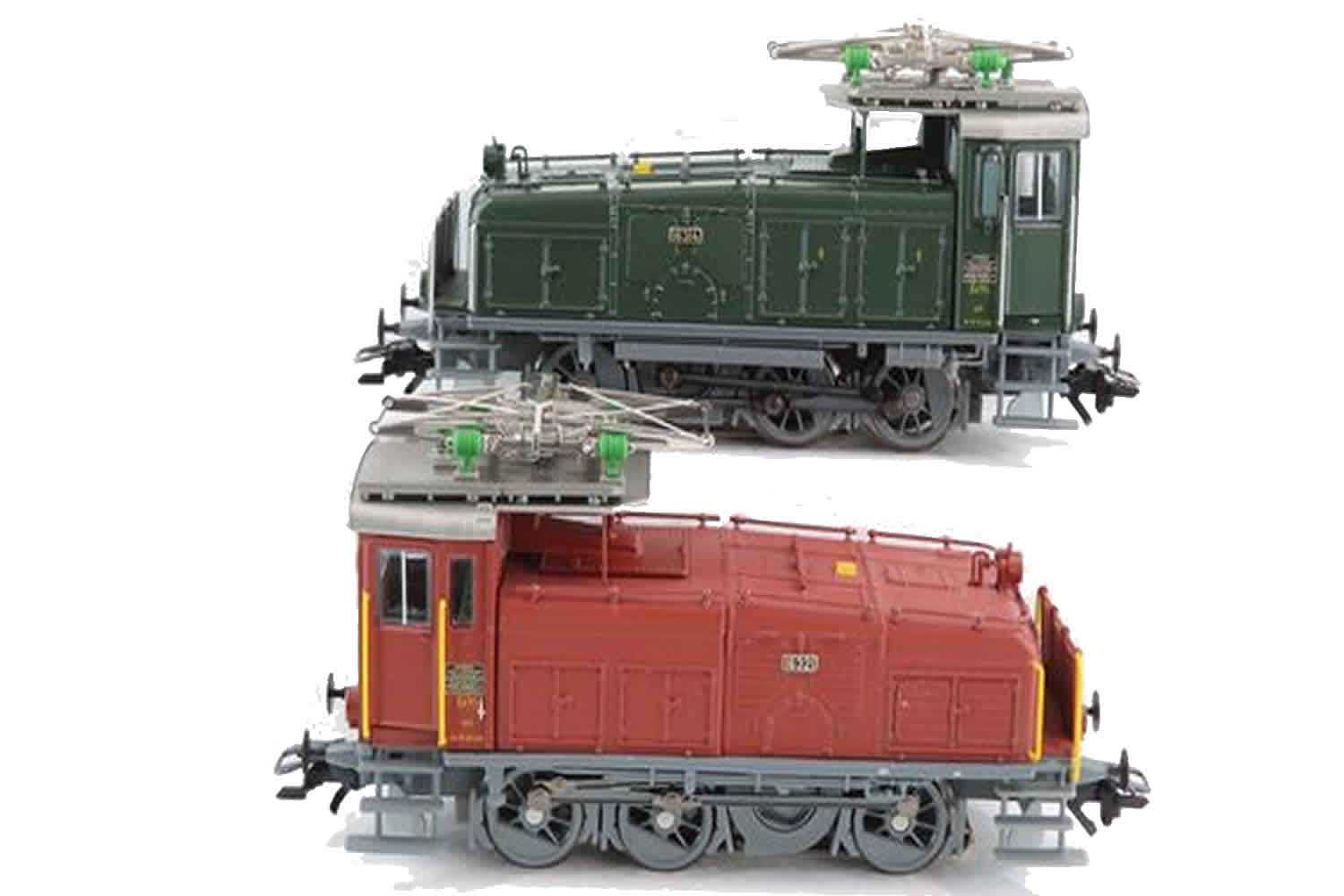

2 different Swiss Federal Railways (SBB/CFF/FFS) class Ee 3/3 Halbschuh / Casual Shoe electric switch engines. Design from the first production series in 1927/28, with a cab at one end and a switchmans platform at the front. One fir green version as it looked at the end of the Forties / beginning of the Fifties, with open buffers, road number 16314. One oxide red version as it looked at the beginning / middle of the Sixties, with open buffers, locomotive road number 16321.

Source: www.maerklin.de
SBB Halbschuh / Casual Shoe Ee 3/3 16311-16326 Increasing electrification of the Swiss railroad network pointed up a need for electric switch engines. Compared to steam locomotives electric switch engines were ready to run without a lot of preparation time and only required power when they were actually in operation. After two prototypes (Ee 3/4) were taken into operation in 1923, the SBB purchased a first series of 16 units starting in 1928 from SLM and BBC. These three-axle units could be produced without a pilot wheel set due to technical progress in lowering the weight of their components. They were designated as Ee 3/3 16311-16326. They had a cab at one end of the locomotive, which together with the rather extended roof quickly acquired the more or less affectionate nicknames Flat Iron or Casual Shoe. A characteristic feature was its Winterthur diagonal drive with a jackshaft driving powered by the traction motor and connected to the driving wheels by side rods. High levels of tractive effort could be realized by the wheel sets connected together without individual axles slipping. This concept was also used at that time on faster locomotives, but its real strength was in those situations where it was a matter of high levels of tractive effort. These locomotives were controlled by a flat sliding step switch with thirteen speed levels that controlled the voltage at the traction motor. These quaint switch engines were gradually retired starting in 1980. At the end of 1997, the last five units of the existing Ee 3/3 of this series still on the SBB were taken out of service. The Casual Shoes sold previously to private operators held on several more years until about 1995/96. Several units remained preserved such as road number Ee 3/3 16318 at Locorama in Romanshorn road number Ee 3/3 16311 at Swisstrain.
