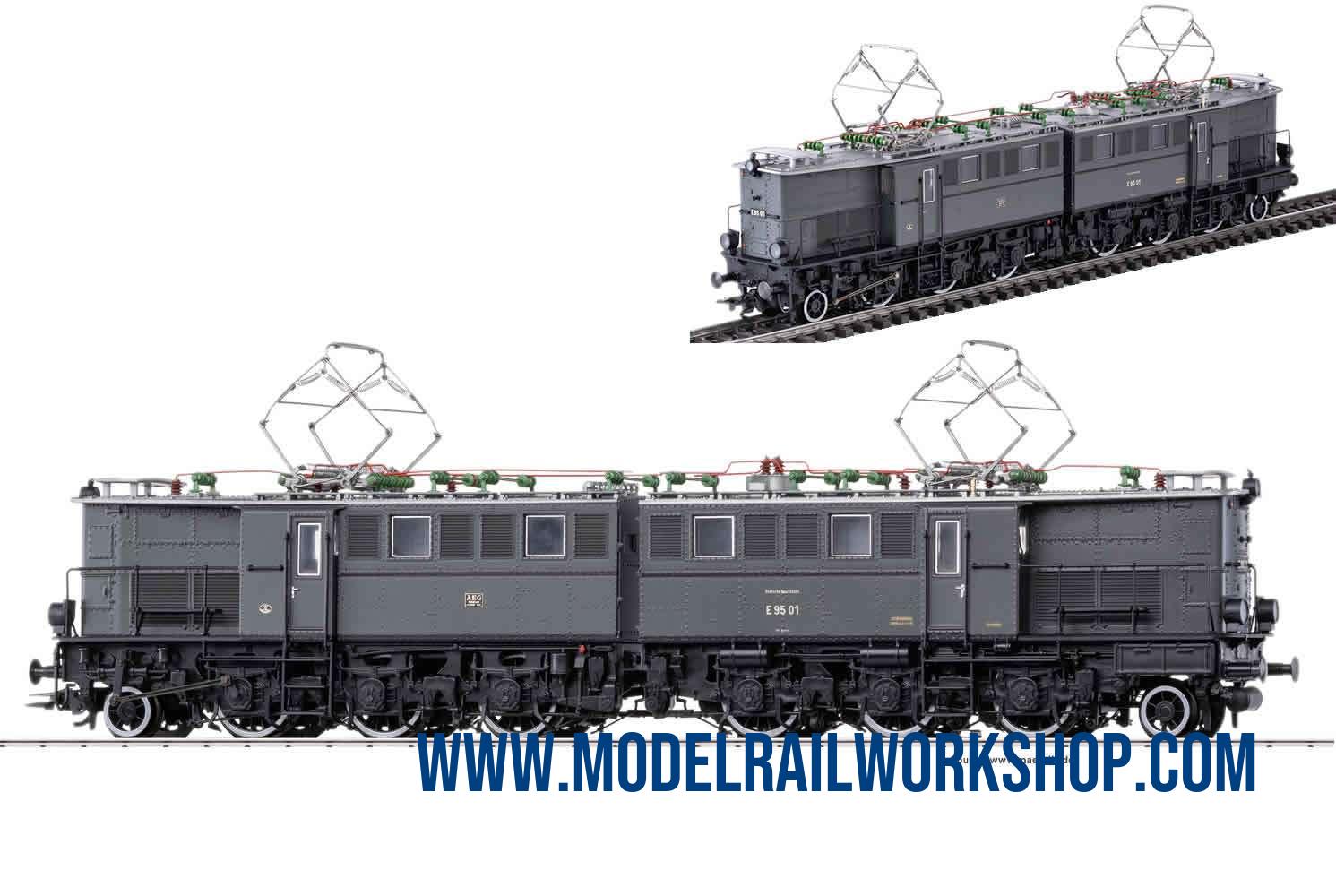

MÄRKLIN PRODUCT: 38950 Electric locomotive - E95

AN EXTRACT FROM MODEL RAIL WORKSHOP - H0 MÄRKLIN DATABASE

Feel free to copy and use.....

KEY DATA
Product Name	38950 Electric locomotive - E95
Object type	Locomotive-Electric
Product Line	Märklin MHI
Era	1925-1945 (II)
Manufactured years	2025-2026
Text on object	Deutsche Reichsbahn - AEG
Number on object	E 95-01
Classification	E95
Type of housing	Metal
Length	24,1 cm
Technology	Digital MFX+
Nationality	Germany
Railway company	- Deutsche Reichsbahn 1920-1937
Limited Edition	360
Märklin RRP (Year)	699€ (2025)
Url to Märklin	Klick to GoTo www.maerklin.de

Search for more products in the Database!

Description
Class E 95 Electric Locomotive The E 95 German State Railroad Company (DRG) class E 95 heavy freight electric locomotive. Used to pull heavy unit coal trains in the Silesian network. Bluish gray basic paint scheme. The electric locomotive was the largest electric locomotive in Germany for a long time. Locomotive road number E 95 01. The locomotive looks as it did around 1928. The locomotive has an mfx+ digital decoder and extensive light and sound functions. 2 controlled, high-efficiency propulsion units, each with a flywheel, 1 motor in each locomotive half. Both outer drive wheel sets powered in each group of drive wheels. 2 Traction tires. Both locomotive halves are permanently coupled together using couplings with guide mechanisms. Dual headlights change over with the direction of travel, will work in conventional operation, and can be controlled digitally. There is also a third headlight mounted above as an oncoming train light and it can be controlled separately at the front in the direction of travel. There is cab lighting and engine room lighting in each locomotive that can be controlled separately in digital operation. Maintenance-free LEDs are used for the lighting. The pantograph on each locomotive half can be raised and lowered separately in digital operation. The highly detailed construction is constructed mostly of metal and includes many separately applied individual parts. There are close couplers with close coupler mechanisms and NEM pockets at both ends of the locomotive. The buffer height adheres to the NEM. The minimum radius for operation is 360 mm Brake hoses and prototype coupler imitations are included for mounting on the locomotive. A dump car set to go with this locomotive with 10 type OOt Oldenburg high-capacity dump cars as new tooling is being offered exclusively for Insider members in 2025 under item number 46226 along with a type Pwg Pr 14 freight train baggage car under item number 46987. The unit coal train can be extended with another 10 high-capacity dump cars under Trix item number 24266 by replacing the wheelsets with the required AC wheelsets. Source: www.maerklin.de A Milestone in German Locomotive Building Larger, more powerful, more expensive: This is how the class E 95 electric locomotive can be described which was placed into service in 1927 as six units by the German State Railroad. With a continuous rating of over 3,200 horsepower, a length of over 20 meters / 65 feet, a weight of 138.5 metric tons, and a price of 543,000 Reich Marks, these characteristic units were at that time the most powerful and most expensive German electric locomotives. They were designed for the many heavy coal trains, up to 2,200 metric tons, which rolled every day from the Silesian mountain area in the direction of Dresden and Berlin. Their quaint, almost terrifying appearance was based among other things on the two high hoods that contained the oil-cooled main transformer and the contactor control circuits. Moreover, the class E 95 units were actually double locomotives to allow installation of the necessary six driving axles. In operation these power houses turned in marvelous performance. At that time, they reached the highest running performance of all Silesian freight locomotives. When demand for coal went down in the course of the global economic crisis, these 70 km/h / 44 mph locomotives were also used to pull passenger trains. Road number E 95 02 has been preserved in the maintenance facility.

Description

Class E 95 Electric Locomotive
The E 95

German State Railroad Company (DRG) class E 95 heavy freight electric locomotive. Used to pull heavy unit coal trains in the Silesian network. Bluish gray basic paint scheme. The electric locomotive was the largest electric locomotive in Germany for a long time. Locomotive road number E 95 01. The locomotive looks as it did around 1928.

The locomotive has an mfx+ digital decoder and extensive light and sound functions. 2 controlled, high-efficiency propulsion units, each with a flywheel, 1 motor in each locomotive half. Both outer drive wheel sets powered in each group of drive wheels. 2 Traction tires. Both locomotive halves are permanently coupled together using couplings with guide mechanisms. Dual headlights change over with the direction of travel, will work in conventional operation, and can be controlled digitally. There is also a third headlight mounted above as an oncoming train light and it can be controlled separately at the front in the direction of travel. There is cab lighting and engine room lighting in each locomotive that can be controlled separately in digital operation. Maintenance-free LEDs are used for the lighting. The pantograph on each locomotive half can be raised and lowered separately in digital operation. The highly detailed construction is constructed mostly of metal and includes many separately applied individual parts. There are close couplers with close coupler mechanisms and NEM pockets at both ends of the locomotive. The buffer height adheres to the NEM. The minimum radius for operation is 360 mm Brake hoses and prototype coupler imitations are included for mounting on the locomotive.

A dump car set to go with this locomotive with 10 type OOt Oldenburg high-capacity dump cars as new tooling is being offered exclusively for Insider members in 2025 under item number 46226 along with a type Pwg Pr 14 freight train baggage car under item number 46987. The unit coal train can be extended with another 10 high-capacity dump cars under Trix item number 24266 by replacing the wheelsets with the required AC wheelsets.

Source: www.maerklin.de
A Milestone in German Locomotive Building
Larger, more powerful, more expensive: This is how the class E 95 electric locomotive can be described which was placed into service in 1927 as six units by the German State Railroad. With a continuous rating of over 3,200 horsepower, a length of over 20 meters / 65 feet, a weight of 138.5 metric tons, and a price of 543,000 Reich Marks, these characteristic units were at that time the most powerful and most expensive German electric locomotives. They were designed for the many heavy coal trains, up to 2,200 metric tons, which rolled every day from the Silesian mountain area in the direction of Dresden and Berlin. Their quaint, almost terrifying appearance was based among other things on the two high hoods that contained the oil-cooled main transformer and the contactor control circuits. Moreover, the class E 95 units were actually double locomotives to allow installation of the necessary six driving axles. In operation these power houses turned in marvelous performance. At that time, they reached the highest running performance of all Silesian freight locomotives. When demand for coal went down in the course of the global economic crisis, these 70 km/h / 44 mph locomotives were also used to pull passenger trains. Road number E 95 02 has been preserved in the maintenance facility.
