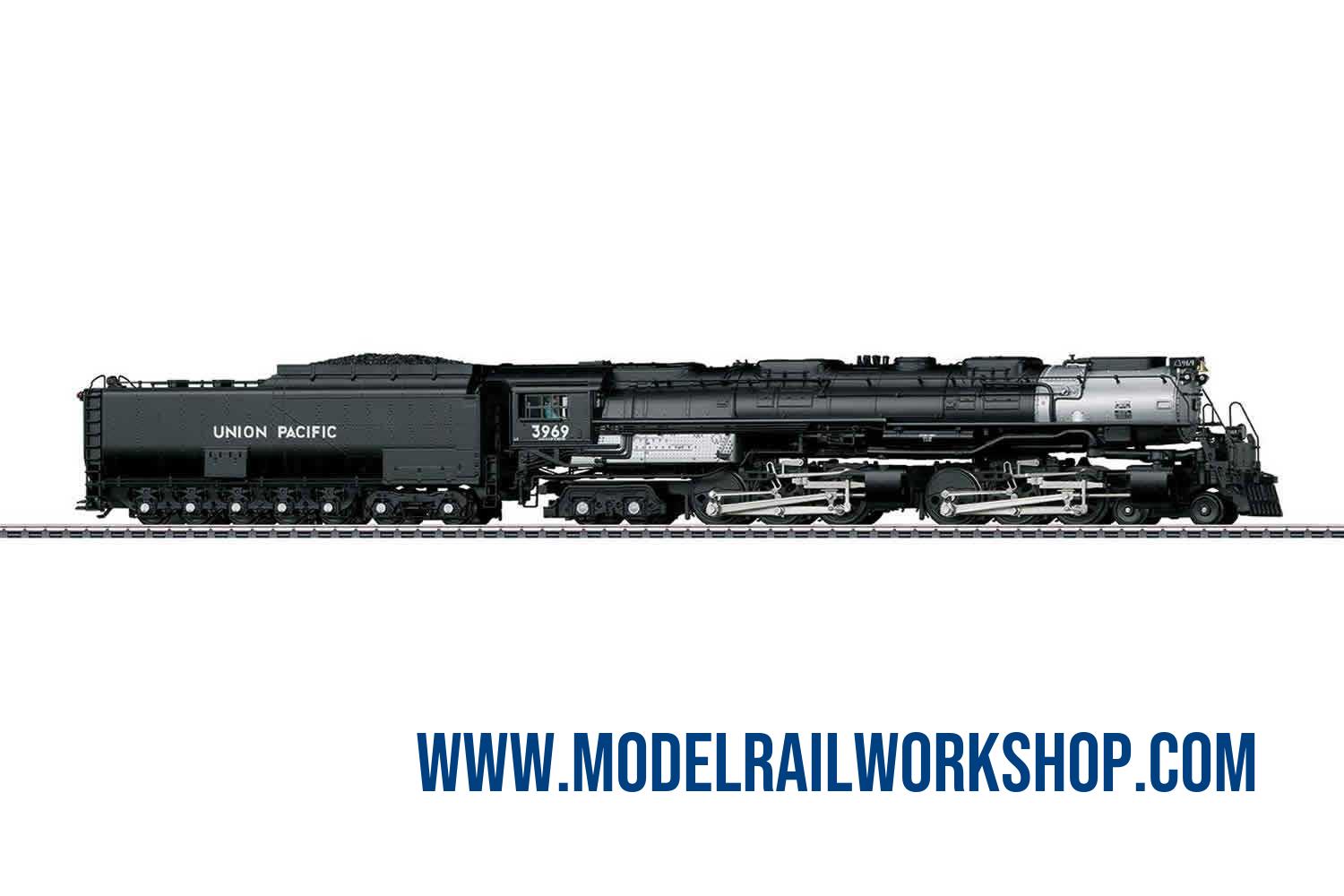

MÄRKLIN PRODUCT: 39912 Steam locomotive with tender - class 3900 Challenger

AN EXTRACT FROM MODEL RAIL WORKSHOP - H0 MÄRKLIN DATABASE

Feel free to copy and use.....

KEY DATA
Product Name	39912 Steam locomotive with tender - class 3900 Challenger
Object type	Locomotive-Steam tender
Product Line	Märklin Special Model
Era	1945-1970 (III)
Manufactured years	2018-2021
Text on object	Union Pacific
Number on object	3969
Classification	3900 Challenger
Type of housing	Metal
Length	42.5 cm
Technology	Digital MFX+
Nationality	USA
Railway company	- Union Pacific
Märklin RRP (Year)	749€ (2021)
Koll valuation (Year)	749€ (2022)
Url to Märklin	Klick to GoTo www.maerklin.de

Search for more products in the Database!

Description
Class 3900 Steam Locomotive Union Pacific Railroad (UP) class 3900 Challenger heavy American freight steam locomotive, with a coal tender. Locomotive road number 3969. The locomotive looks as it did in the Fifties. Source:www.maerklin.de The Union Pacific Challenger The Challenger type steam locomotives celebrated their hour of birth on the Union Pacific Railroad (UP). In the Mid-Thirties, UP chief engineer Arthur H. Fetter and Otto Jabelmann (UP superintendent for locomotives) realized that the existing steam locomotives could not haul heavier trainloads at higher speeds. Freight service was to be accelerated chiefly on the 0.82% grades in Wyoming. The two UP engineers developed an articulated locomotive with a 4-6-6-4 wheel arrangement in cooperation with American Locomotive Company (ALCO). In fact, it followed the Mallet design but did not work with the compound principle. The Challenger worked with simple expansion on each set of driving wheels. The first prototype with road number 3900 went into operation on August 25, 1936 in Council Bluffs, Iowa. This locomotive had the newest steam locomotive technology of that time, including roller bearings on all of the pilot and trailing truck wheels and on the tender wheels, a generously dimensioned boiler, as well as a combustion chamber adapted accordingly to the locomotive. With a maximum speed of 70 mph (112.65 km/h) it had the following main data: boiler pressure 17.93 atmospheres / 263.50 pounds per square inch; four cylinders (558.8 x 812.8 mm / 22 x 32); driving wheel diameter 1,752.6 mm / 69 (Boxpok wheels); grate surface 10.05 square meters / 108.18 square feet; heating surface 499 square meters / 5,371.19 square feet; super heater 151.1 square meters / 1,626.43 square feet; locomotive weight 256.5 metric tons; adhesion weight 175 metric tons; semi-Vanderbilt tender with two three-axle trucks. Its first proving test was on the point of a heavy freight train from Ogden (Utah) to Green River (Wyoming) while mastering the grades of the Wasatch Mountains. In order to test the performance of this unit, the UP officials decided to have the locomotive run without additional locomotive support. Road number 3900 did this run with flying colors and Fetter thus declared that the new design had met the challenge. The name Challenger stuck for the locomotive. By 1937 the UP placed 40 units in three production groups into service with the numbers 3900-3939 (from 1944 on: 3800-3839), in which road numbers 3934-3939 were converted to oil firing right after being delivered and others followed in the next few years. From 1942-1944 the UP added 65 Challengers (3930-3949, 3950-3969, and 3975-3999) to its roster. With many improvements taken from the Big Boys (such as more powerful boiler, roller bearings on all wheel sets, a larger cab) they were now designated as heavy Challengers compared to the light Challengers from the years 1936/37. In 1945, road numbers 3975-3984 were converted to oil firing, in 1952 road numbers 3930/31/32/34/37/38/43/44 followed. In the same year, they were given new road numbers 3700–3707, while road numbers 3975–3984 became 3708–3717. In the beginning the Challengers pulled chiefly freight trains over the grades on the Wasatch Mountains and Sherman Hill, but after the still more powerful Big Boys were placed into service, they were seen on the entire UP system in California, Nebraska, Oregon, Utah, and Wyoming. In addition, they were also used for a time to pull passenger trains such as the Challenger Streamliners of the same name between Chicago and California. With faster conversion to diesel power after World War II, the last Challengers were taken out of service in 1959. Just two remained preserved: road number 3977 as a memorial in North Platte (Nebraska) and road number 3985, also converted to oil firing as a UP museum locomotive.

Description

Class 3900 Steam Locomotive

Union Pacific Railroad (UP) class 3900 Challenger heavy American freight steam locomotive, with a coal tender. Locomotive road number 3969. The locomotive looks as it did in the Fifties.

Source:www.maerklin.de
The Union Pacific Challenger The Challenger type steam locomotives celebrated their hour of birth on the Union Pacific Railroad (UP). In the Mid-Thirties, UP chief engineer Arthur H. Fetter and Otto Jabelmann (UP superintendent for locomotives) realized that the existing steam locomotives could not haul heavier trainloads at higher speeds. Freight service was to be accelerated chiefly on the 0.82% grades in Wyoming. The two UP engineers developed an articulated locomotive with a 4-6-6-4 wheel arrangement in cooperation with American Locomotive Company (ALCO). In fact, it followed the Mallet design but did not work with the compound principle. The Challenger worked with simple expansion on each set of driving wheels. The first prototype with road number 3900 went into operation on August 25, 1936 in Council Bluffs, Iowa. This locomotive had the newest steam locomotive technology of that time, including roller bearings on all of the pilot and trailing truck wheels and on the tender wheels, a generously dimensioned boiler, as well as a combustion chamber adapted accordingly to the locomotive. With a maximum speed of 70 mph (112.65 km/h) it had the following main data: boiler pressure 17.93 atmospheres / 263.50 pounds per square inch; four cylinders (558.8 x 812.8 mm / 22 x 32); driving wheel diameter 1,752.6 mm / 69 (Boxpok wheels); grate surface 10.05 square meters / 108.18 square feet; heating surface 499 square meters / 5,371.19 square feet; super heater 151.1 square meters / 1,626.43 square feet; locomotive weight 256.5 metric tons; adhesion weight 175 metric tons; semi-Vanderbilt tender with two three-axle trucks. Its first proving test was on the point of a heavy freight train from Ogden (Utah) to Green River (Wyoming) while mastering the grades of the Wasatch Mountains. In order to test the performance of this unit, the UP officials decided to have the locomotive run without additional locomotive support. Road number 3900 did this run with flying colors and Fetter thus declared that the new design had met the challenge. The name Challenger stuck for the locomotive. By 1937 the UP placed 40 units in three production groups into service with the numbers 3900-3939 (from 1944 on: 3800-3839), in which road numbers 3934-3939 were converted to oil firing right after being delivered and others followed in the next few years. From 1942-1944 the UP added 65 Challengers (3930-3949, 3950-3969, and 3975-3999) to its roster. With many improvements taken from the Big Boys (such as more powerful boiler, roller bearings on all wheel sets, a larger cab) they were now designated as heavy Challengers compared to the light Challengers from the years 1936/37. In 1945, road numbers 3975-3984 were converted to oil firing, in 1952 road numbers 3930/31/32/34/37/38/43/44 followed. In the same year, they were given new road numbers 3700–3707, while road numbers 3975–3984 became 3708–3717. In the beginning the Challengers pulled chiefly freight trains over the grades on the Wasatch Mountains and Sherman Hill, but after the still more powerful Big Boys were placed into service, they were seen on the entire UP system in California, Nebraska, Oregon, Utah, and Wyoming. In addition, they were also used for a time to pull passenger trains such as the Challenger Streamliners of the same name between Chicago and California. With faster conversion to diesel power after World War II, the last Challengers were taken out of service in 1959. Just two remained preserved: road number 3977 as a memorial in North Platte (Nebraska) and road number 3985, also converted to oil firing as a UP museum locomotive.
