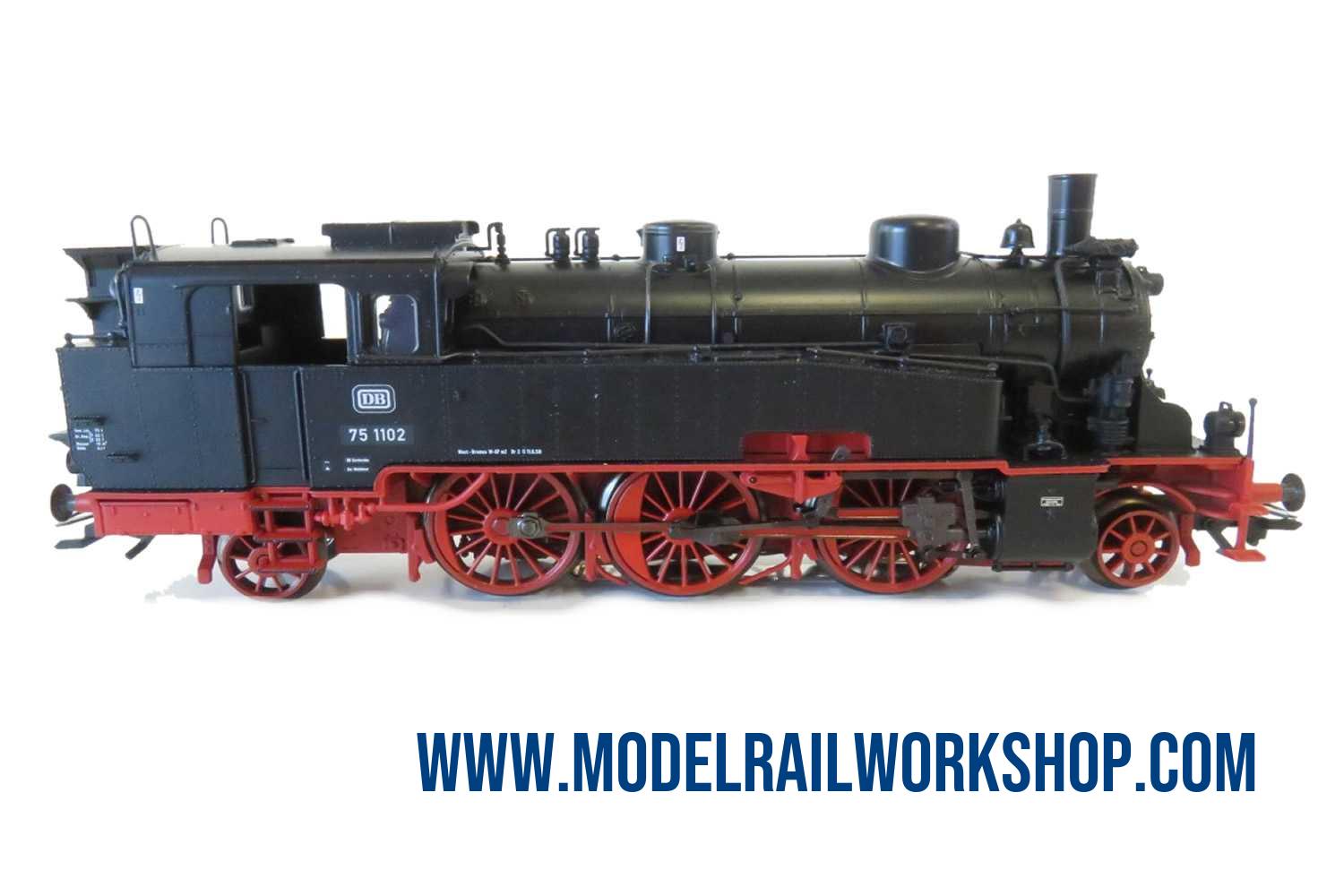

MÄRKLIN PRODUCT: 39753 Steam tender locomotive - BR 75

AN EXTRACT FROM MODEL RAIL WORKSHOP - H0 MÄRKLIN DATABASE

Feel free to copy and use.....

KEY DATA
Product Name	39753 Steam tender locomotive - BR 75
Object type	Locomotive-Steam tender
Product Line	Märklin MHI
Era	1945-1970 (III)
Manufactured years	2017-2019
Text on object	DB
Number on object	75 1102
Classification
Type of housing	Synthetic
Length	14.6 cm
Technology	Digital MFX+
Nationality	Germany
Railway company	- DB (Deutsche Bundesbahn 1949-1994)
Märklin RRP (Year)	350€ (2018)
Url to Märklin	Klick to GoTo www.maerklin.de

Search for more products in the Database!

Description
Class 75.4 General-Purpose Steam Tank Locomotive German Federal Railroad (DB) class 75.4 (former Baden VI c) general-purpose steam tank locomotive. Version with triple headlights with DRB design electric lamps below and DB Reflex glass lamp above and riveted water tanks. Road number 75 1102. The locomotive looks as it did around 1958. The Tank Locomotive Classic for the First Time in H0 Temptingly not only for everyone, who still does not have a model of this impressive all around tank locomotive. For this design masterpiece shows the locomotive as it looked after its test in June of 1958. Source: www.maerklin.de The class VIb (class 75.1-3) had turned out well on the many curving, steep routes in Baden. The Baden State Railroad therefore went back to the 2-6-2T wheel arrangement for further development of this type, but it equipped the units of the new class Vic with superheated steam running gear. The higher permissible axle load allowed a larger boiler in addition to the installation of a superheater. This once again increased the performance and the speed of the new locomotive. Effective with the second production run in 1915/16, the VIc units were equipped with a Knorr design feedwater heating system, effective with the third production run a steel firebox, and effective with the fourth production run a steel firebox with a new tube sheet. A permissible maximum speed of 90 km/h / 56 mph in both directions predestined these units for use in light express train service. With 10 cubic meters / 2,642 gallons of water and 4 metric tons of coal, they were able to master a correspondingly large radius of action. The first delivery was done in 1914 by the locomotive builder Maschinenbau-Gesellschaft Karlsruhe (MBG) / Machinery Construction Company Karlsruhe (MBG). By 1921, the MBG built the most locomotives, 14 units came however from Arnold Jung in Jungenthal. In 1918, 28 locomotives had to be surrendered as reparation payment, 15 to France, and 13 to Belgium (In 1923 units were sold to Luxembourg). The DRG took over the remaining 107 units as road numbers 75 401-494 (with gaps) and road numbers 75 1001-1023 as well as 1101-1120. The VIc units also soon made themselves useful outside of Baden: Ten locomotives were used experimentally in 1924 for suburban service on the Berlin S-Bahn, another 20 went to Mecklenburg, where effective 1925 the Berlin VIc units also went. The DB still had 66 operational units on their roster after World War II that were used mainly in Freiburg, Offenburg, Radolfzell, Singen, Waldshut, Karlsruhe, and Villingen. As the last VIc on the DB, road number 75 1118 did the great official departure run (Karlsruhe – Schönmünzach) of the last Baden steam locomotive used in regular service by the DB. It was still under steam for this purpose May 12-22, 1966. A day later, it was put into storage and on April 20, 1967, it was retired.

Description

Class 75.4 General-Purpose Steam Tank Locomotive

German Federal Railroad (DB) class 75.4 (former Baden VI c) general-purpose steam tank locomotive. Version with triple headlights with DRB design electric lamps below and DB Reflex glass lamp above and riveted water tanks. Road number 75 1102. The locomotive looks as it did around 1958.

The Tank Locomotive Classic for the First Time in H0
Temptingly not only for everyone, who still does not have a model of this impressive all around tank locomotive. For this design masterpiece shows the locomotive as it looked after its test in June of 1958.

Source: www.maerklin.de
The class VIb (class 75.1-3) had turned out well on the many curving, steep routes in Baden. The Baden State Railroad therefore went back to the 2-6-2T wheel arrangement for further development of this type, but it equipped the units of the new class Vic with superheated steam running gear. The higher permissible axle load allowed a larger boiler in addition to the installation of a superheater. This once again increased the performance and the speed of the new locomotive. Effective with the second production run in 1915/16, the VIc units were equipped with a Knorr design feedwater heating system, effective with the third production run a steel firebox, and effective with the fourth production run a steel firebox with a new tube sheet. A permissible maximum speed of 90 km/h / 56 mph in both directions predestined these units for use in light express train service. With 10 cubic meters / 2,642 gallons of water and 4 metric tons of coal, they were able to master a correspondingly large radius of action. The first delivery was done in 1914 by the locomotive builder Maschinenbau-Gesellschaft Karlsruhe (MBG) / Machinery Construction Company Karlsruhe (MBG). By 1921, the MBG built the most locomotives, 14 units came however from Arnold Jung in Jungenthal. In 1918, 28 locomotives had to be surrendered as reparation payment, 15 to France, and 13 to Belgium (In 1923 units were sold to Luxembourg). The DRG took over the remaining 107 units as road numbers 75 401-494 (with gaps) and road numbers 75 1001-1023 as well as 1101-1120. The VIc units also soon made themselves useful outside of Baden: Ten locomotives were used experimentally in 1924 for suburban service on the Berlin S-Bahn, another 20 went to Mecklenburg, where effective 1925 the Berlin VIc units also went. The DB still had 66 operational units on their roster after World War II that were used mainly in Freiburg, Offenburg, Radolfzell, Singen, Waldshut, Karlsruhe, and Villingen. As the last VIc on the DB, road number 75 1118 did the great official departure run (Karlsruhe – Schönmünzach) of the last Baden steam locomotive used in regular service by the DB. It was still under steam for this purpose May 12-22, 1966. A day later, it was put into storage and on April 20, 1967, it was retired.
