MÄRKLIN PRODUCT: 39549 Powered Track Car - Robel 54.22

AN EXTRACT FROM MODEL RAIL WORKSHOP - H0 MÄRKLIN DATABASE

Feel free to copy and use.....

KEY DATA
Product Name	39549 Powered Track Car - Robel 54.22
Object type	Car-Maintenance and breakdown service
Product Line	Märklin Special models
Era	2006 - (VI)
Manufactured years	2017-2018
Text on object	ROBEL - DB -Netz Bistandhaltung
Number on object	No number
Classification	Robel 54.22
Type of housing	Metal/Synthetic
Length	13.4 cm
Technology	Digital MFX+
Nationality	Denmark
Railway company	- DB (Deutsche Bahn 1994-YTD)
Märklin RRP (Year)	399€ (2021)
Url to Märklin	Klick to GoTo www.maerklin.de

Search for more products in the Database!

Description
ROBEL 54.22 Powered Track Car This product was done in cooperation with Viessmann Modelltechnik GmbH. The Powered Vehicle of the Elves Actually belongs on every layout, the yellow vehicle of the elves, who maintain the DB track infrastructure. What we mean here is of course the ROBEL 54.22 powered track car that is ideally suited as a tractive and work unit with a high level of pulling power making it ideal for transfer service. With a maximum speed of 100 km/h / 63 mph, the workers are quickly transported to the next work site. At the press of a button, crane rotates on the model once on its axis and describes and up and down movement. ROBEL 54.22 powered track car as a construction site vehicle for the DB Network Maintenance. With a movable loading crane. Used for maintenance and monitoring. The unit looks as it currently does in real life. The model has an mfx+ digital decoder and extensive sound functions. It has controlled high-efficiency propulsion. The model has a compact design maintenance-free motor. 2 axles powered. The model has separately applied grab irons on the cab. The triple headlights and dual red marker lights change over with the direction of travel and can be controlled digitally. The headlights at Locomotive End 2 and 1 can be turned off separately in digital operation. The model has the double A light function. Maintenance-free warm white and red LEDs are used for the lighting. The cab has interior details and controllable interior lighting. The loading crane can be turned by a motor and can be controlled digitally. Source: www.maerklin.de At the turn of the millennium, the German Railroad needed additional powered track cars. However, due to increased work requirements as well as altered conditions for use, the new units had to be modified from the designs for existing units. On the units previously purchased, the power shift transmissions were usually overloaded in the toughest of conditions. Two requirements were that the units quickly reach a maximum speed of 100 km/h / 63 mph and a higher motor performance. These requirements could be fulfilled very well by the BAMOWAG 54.22 Robel powered track car with a hydrodynamic transmission and a 440 kilowatt / 590 horsepower water-cooled type BF 8 M 1015 C KHD diesel motor. The result was a tractive and work unit with greater pulling power and ideally suited for transfer service. The DB then purchased it in the years 1999 to 2006. A high-quality drivetrain and modern, technically well-engineered steering for the unit enabled heavy loads behind it. The starting tractive effort was thus 90 kilo Newton / 20,233 pounds and the maximum trailing load was specified as 2,000 metric tons. In addition, the classic requirements of loading, hauling, lifting, and lowering were mastered effortlessly. The BAMOWAG 54.22 features a generously proportioned, air-conditioned operators cab as well as a large, low-mounted load area. The hydraulic PALFINGER loading crane, type PK 19000 with 10 metric tons of lifting power and 5 metric tons of payload, is located there. This crane can also be used as a power shovel. The powered track car as well as the crane can be remote controlled and tandem operation of several units is possible. All of the units have indirect braking and spring-loaded brakes. In 2011/12, 11 Bamowag 54.22 units were converted to lightweight snowplow units with a mounting arrangement for accessory snow brooms and rotary snowplows. The Austrian Federal Railways (ÖBB) purchased the same unit as the X630, and the Swiss BLS Lötschberg Railroad, Inc. purchased it as the Tm 235.

Description

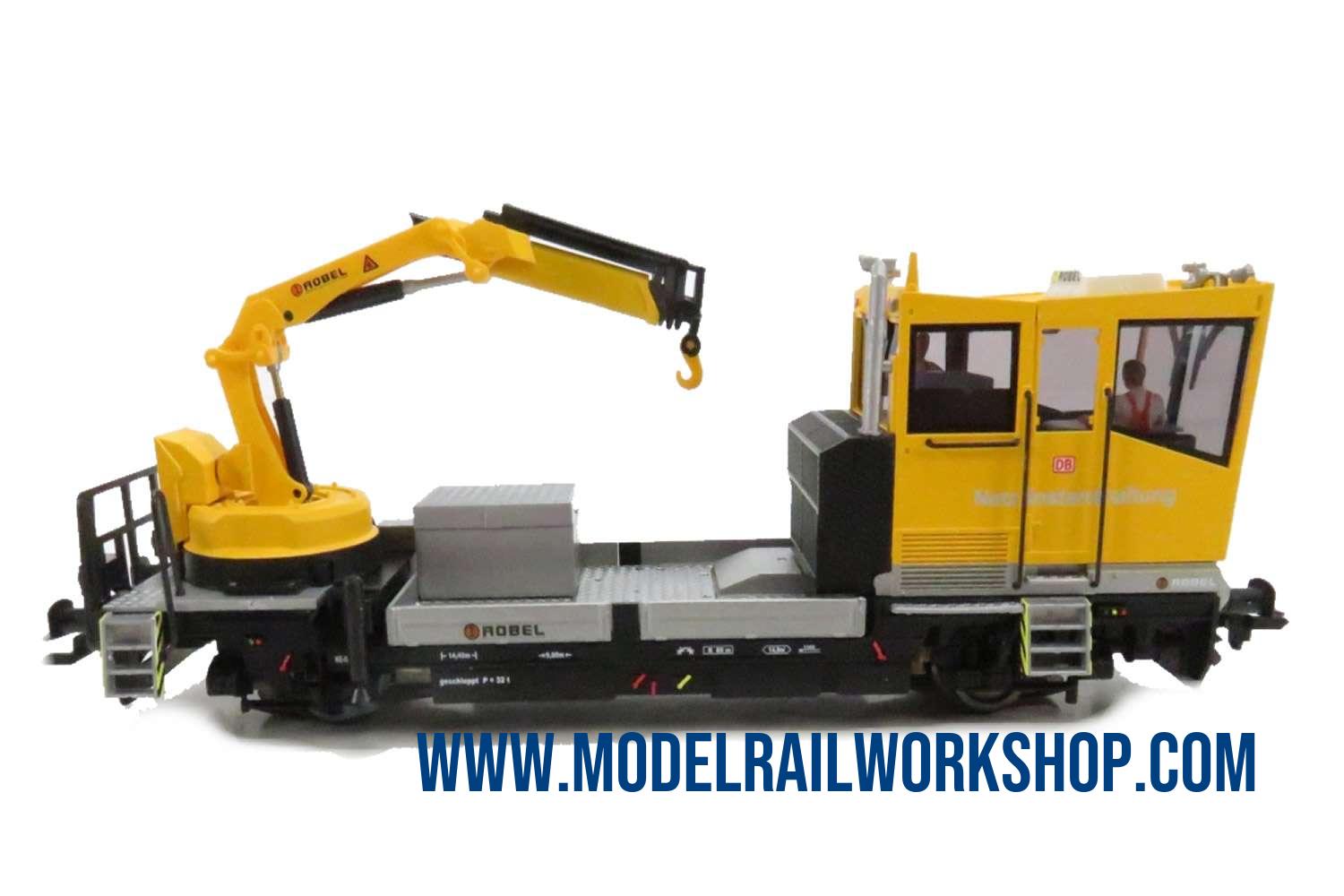

ROBEL 54.22 Powered Track Car

This product was done in cooperation with  Viessmann Modelltechnik GmbH.

The Powered Vehicle of the Elves
Actually belongs on every layout, the yellow vehicle of the elves, who maintain the DB track infrastructure. What we mean here is of course the ROBEL 54.22 powered track car that is ideally suited as a tractive and work unit with a high level of pulling power making it ideal for transfer service. With a maximum speed of 100 km/h / 63 mph, the workers are quickly transported to the next work site. At the press of a button, crane rotates on the model once on its axis and describes and up and down movement.

ROBEL 54.22 powered track car as a construction site vehicle for the DB Network Maintenance. With a movable loading crane. Used for maintenance and monitoring. The unit looks as it currently does in real life.

The model has an mfx+ digital decoder and extensive sound functions. It has controlled high-efficiency propulsion. The model has a compact design maintenance-free motor. 2 axles powered. The model has separately applied grab irons on the cab. The triple headlights and dual red marker lights change over with the direction of travel and can be controlled digitally. The headlights at Locomotive End 2 and 1 can be turned off separately in digital operation. The model has the double A light function. Maintenance-free warm white and red LEDs are used for the lighting. The cab has interior details and controllable interior lighting. The loading crane can be turned by a motor and can be controlled digitally.

Source: www.maerklin.de
At the turn of the millennium, the German Railroad needed additional powered track cars. However, due to increased work requirements as well as altered conditions for use, the new units had to be modified from the designs for existing units. On the units previously purchased, the power shift transmissions were usually overloaded in the toughest of conditions. Two requirements were that the units quickly reach a maximum speed of 100 km/h / 63 mph and a higher motor performance. These requirements could be fulfilled very well by the BAMOWAG 54.22 Robel powered track car with a hydrodynamic transmission and a 440 kilowatt / 590 horsepower water-cooled type BF 8 M 1015 C KHD diesel motor. The result was a tractive and work unit with greater pulling power and ideally suited for transfer service. The DB then purchased it in the years 1999 to 2006. A high-quality drivetrain and modern, technically well-engineered steering for the unit enabled heavy loads behind it. The starting tractive effort was thus 90 kilo Newton / 20,233 pounds and the maximum trailing load was specified as 2,000 metric tons. In addition, the classic requirements of loading, hauling, lifting, and lowering were mastered effortlessly. The BAMOWAG 54.22 features a generously proportioned, air-conditioned operators cab as well as a large, low-mounted load area. The hydraulic PALFINGER loading crane, type PK 19000 with 10 metric tons of lifting power and 5 metric tons of payload, is located there. This crane can also be used as a power shovel. The powered track car as well as the crane can be remote controlled and tandem operation of several units is possible. All of the units have indirect braking and spring-loaded brakes. In 2011/12, 11 Bamowag 54.22 units were converted to lightweight snowplow units with a mounting arrangement for accessory snow brooms and rotary snowplows. The Austrian Federal Railways (ÖBB) purchased the same unit as the X630, and the Swiss BLS Lötschberg Railroad, Inc. purchased it as the Tm 235.
