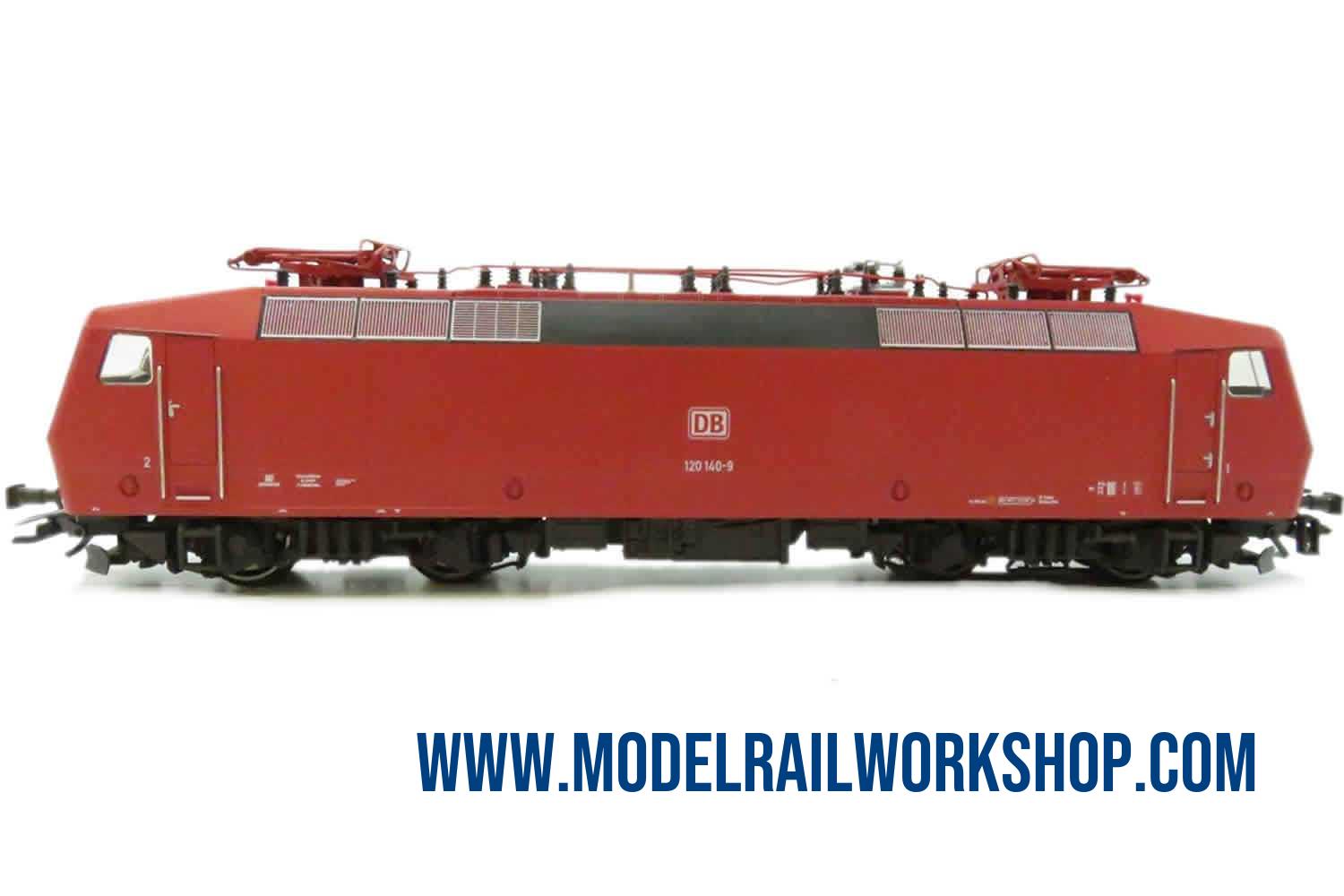

MÄRKLIN PRODUCT: 37529 Electric locomotive - class 120-1

AN EXTRACT FROM MODEL RAIL WORKSHOP - H0 MÄRKLIN DATABASE

Feel free to copy and use.....

KEY DATA
Product Name	37529 Electric locomotive - class 120-1
Object type	Locomotive-Electric
Product Line	Märklin Special Model
Era	1990-2006 (V)
Manufactured years	2016-2018
Text on object	DB
Number on object	120 140-9
Classification	class 120-1
Type of housing	Metal
Length	22.1 cm
Technology	Digital MFX+
Nationality	Germany
Railway company	- DB (Deutsche Bahn 1994-YTD)
Märklin RRP (Year)	330€ (2016)
Koll valuation (Year)	260€ (2022)
Url to Märklin	Klick to GoTo www.maerklin.de

Search for more products in the Database!

Description
Class 120.1 Electric Locomotive German Railroad, Inc. (DB AG) class 120.1 fast general-purpose locomotive. Regular production version. Road number 120 140-9. The locomotive looks as it did around 1995. Source: www.maerklin.de The Three-Phase Current Pioneer. The class 120 marked the technological change to three-phase current propulsion. This principle promised compact motors largely free of parts that would wear out, without commutators, commutator rings, brushes, and mechanical contacts. Because a wide torque range and rpm range can be mastered with three-phase current technology, the performance specifications for this new development were broadly formulated. The class 120 was designed to pull 200 km/h or 125 mph fast InterCity trains and 5,400 metric ton freight trains and be equipped with push/pull controls and electric regenerative brakes. In 1977, the DB ordered five experimental units, which were thoroughly tested on test stands, on test runs, and in operational use. Startup, tractive effort, acceleration, running characteristics, braking power, power consumption, and stability were part of these tests. Comparison tests with other makes of locomotives as well as startup tests on the Lötschberg and Semmering grades confirmed the effectiveness of the technology. The speed record was 265 km/h or 165 mph. During the test phase, new developments were introduced, for example: microprocessors for faster monitoring and control. Components were constantly improved until all five units were technically at the same level in 1982 and were ready for regular production. During the several years of development, the purchasing policy changed, however. Instead of all-round locomotives, special locomotives were once again preferred on the basis of common development platforms with many parts in common. Therefore, only the first production run of 60 units of the class 120 were purchased. The five prototypes continue to be used for test purposes, and the regular production locomotives are still proving themselves in daily railroad operations.

Description

Class 120.1 Electric Locomotive

German Railroad, Inc. (DB AG) class 120.1 fast general-purpose locomotive. Regular production version. Road number 120 140-9. The locomotive looks as it did around 1995.

Source: www.maerklin.de
The Three-Phase Current Pioneer. The class 120 marked the technological change to three-phase current propulsion. This principle promised compact motors largely free of parts that would wear out, without commutators, commutator rings, brushes, and mechanical contacts. Because a wide torque range and rpm range can be mastered with three-phase current technology, the performance specifications for this new development were broadly formulated. The class 120 was designed to pull 200 km/h or 125 mph fast InterCity trains and 5,400 metric ton freight trains and be equipped with push/pull controls and electric regenerative brakes. In 1977, the DB ordered five experimental units, which were thoroughly tested on test stands, on test runs, and in operational use. Startup, tractive effort, acceleration, running characteristics, braking power, power consumption, and stability were part of these tests. Comparison tests with other makes of locomotives as well as startup tests on the Lötschberg and Semmering grades confirmed the effectiveness of the technology. The speed record was 265 km/h or 165 mph. During the test phase, new developments were introduced, for example: microprocessors for faster monitoring and control. Components were constantly improved until all five units were technically at the same level in 1982 and were ready for regular production. During the several years of development, the purchasing policy changed, however. Instead of all-round locomotives, special locomotives were once again preferred on the basis of common development platforms with many parts in common. Therefore, only the first production run of 60 units of the class 120 were purchased. The five prototypes continue to be used for test purposes, and the regular production locomotives are still proving themselves in daily railroad operations.
