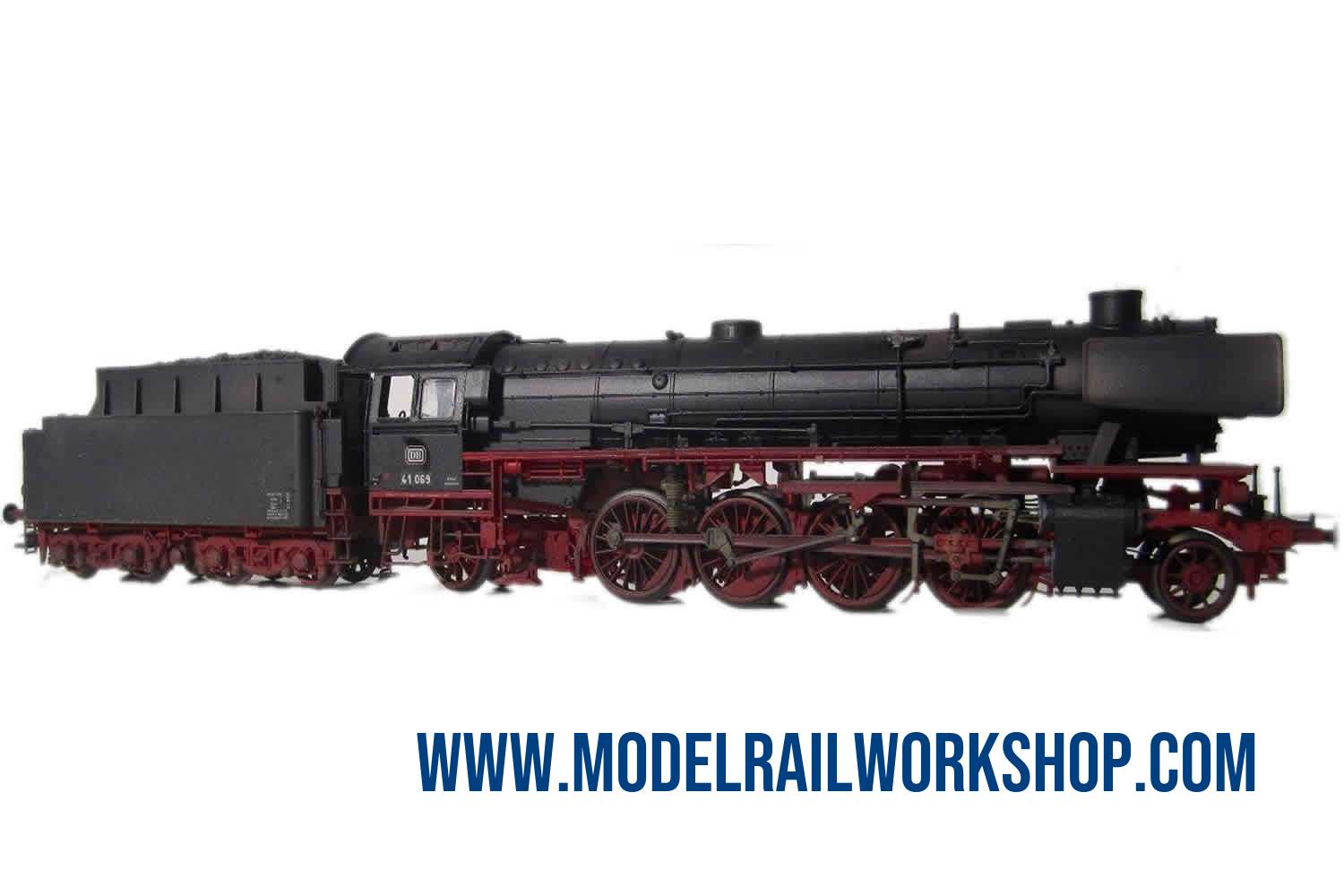

| German Federal Railroad (DB) class 41 freight steam locomotive with a tender and coal firing. Rebuilt version locomotive with new design, high-efficiency boiler, type 2´2´T34 coal tender, Witte smoke deflectors, DB Reflex glass lanterns, inductive magnet on one side, and buffer plate warning stripe. Road number 41 069. The locomotive looks as it did around 1960.
Source: www.maerklin.de
The Class 41 The locomotive building industry developed the class 41 2-8-2 locomotive for fast freight trains as part of the DRGs standardized locomotive program. Schwartzkopff delivered two sample units in 1936. The frame was a new development; the boiler was the same as on the class 03, but was designed on the class 41 for 20 atmospheres or 290 pounds pressure per square inch. The axle load could be set at 18 tons or 20 tons per axle. The resulting class 41 was for the first time a general-purpose locomotive that could be used anywhere. The two pre-production units were followed by 364 regular production locomotives that were improved somewhat and that were delivered by almost all of the German locomotive builders by 1941. These locomotives could run at 90 km/h or 56 mph and had 1,900 horsepower; they were used almost everywhere. After World War II there were 216 locomotives on the DBs roster. It was soon found out that the type St47K boilers were worn out. Since the class 41 was indispensable, the DB developed a completely welded, high-performance boiler with a combustion chamber. Compared to the previous long tube boiler, this version had a higher ratio of premium radiant heating surface and could therefore support a greater load. Between 1957 and 1961 a total of 102 class 41 locomotives were equipped with this new boiler at the maintenance facility in Braunschweig. Together with the front skirting being removed, this resulted in a considerably new look for the class 41 locomotives. 40 of these converted locomotives were also equipped for oil firing. The last grate-fired converted units were retired in 1971. |
