MÄRKLIN PRODUCT: 26546 Tunnel Rescue Train Train Set. - class 212

AN EXTRACT FROM MODEL RAIL WORKSHOP - H0 MÄRKLIN DATABASE

Feel free to copy and use.....

KEY DATA

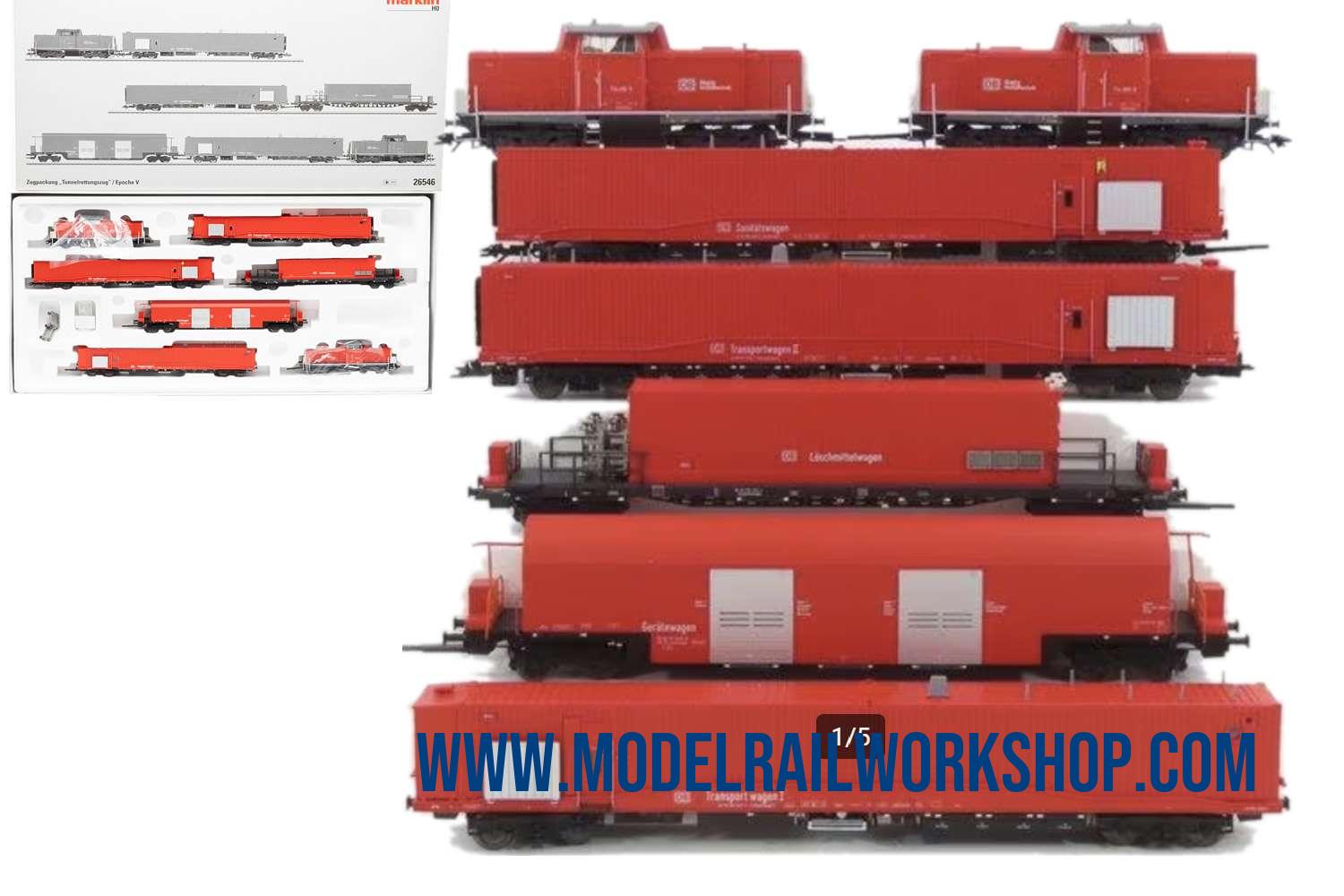

Product Name	26546 Tunnel Rescue Train Train Set. - class 212
Object type	Car-Maintenance and breakdown service
Product Line	Marklin Special Models
Era	1990-2006 (V)
Manufactured years	2008-2009
Type of housing	Synthetic/Metal
Length	158,0 cm
Technology	Digital MFX
Nationality	Germany
Railway company	- DB (Deutsche Bahn 1994-YTD)
Url to Märklin	Klick to GoTo www.maerklin.de

Search for more products in the Database!

No	Baseline	Obj.No	Obj.txt	Category	Description
26546-1	3647	714 015-5	DB Netz Notfaltechnik	Cl 212	Diesel locomotive- red - 14,1 cm
26546-2	3647	714 009-8	DB Netz Notfaltechnik	Cl 212	Diesel locomotive- red - 14,1 cm
26546-3	-	??	DB Sabnitätwagen	-	Hospital car - red
26546-4	-	??	DB Transport wagen 1	-	Closed freight car - red
26546-5	-	??	DB Transport wagen 2	-	Closed freight car - red - TC coupling
26546-6	-	??	DB Löschmittelwagen	-	Tankk car - red
26546-7	-	??	DB Gerätewagen	-	Closed freight car - red

Description
Tunnel Rescue Train Train Set. German Railroad, Inc. (DB AG) class Rtz tunnel rescue train. Version as a single direction train with 2 locomotives and 5 different cars in the traffic red paint scheme of the DB Emergency Technology Network. Locomotive road no. 714 015-5 has an mfx digital decoder, controlled high-efficiency propulsion, a warning light and auxiliary headlights. 2 axles powered. 4 traction tires. The headlights, warning light and auxiliary headlights will work in conventional operation and can be controlled digitally. Transport Car 2 has outboard mounted side sills and a reproduction of the entry area. It has side loading ramps that can be folded down. This car has built-in trackside lighting on the sides of the car, a warning light, and a Telex coupler at the end of the car in the direction of the first aid car for uncoupling the shuttle part of the train from the main part; all of these functions can be controlled digitally. The first aid car has outboard mounted side sills and a reproduction of the entry area. This car has built-in trackside lighting on the sides. The fire extinguishing car has platforms on both sides. It has built-in trackside lighting on the sides of the car. It also has removable roller pallets that can be rolled on the track. The equipment car has offset side sills. It has detailed reproductions of the emergency equipment. It also has built-in trackside lighting on the sides of the car. Transport Car 1 has outboard mounted side sills and a reproduction of the entry area. It has built-in trackside lighting on the sides of the car. The side loading ramp on this car can be folded down. Locomotive road no. 714 009-8 is non-powered and has an mfx digital decoder, headlights, a warning light, and auxiliary headlights. The headlights, warning light and auxiliary headlights will work in conventional operation and can be controlled digitally. The trackside lighting on the side of the first aid car, the fire extinguishing car, the equipment car, and transport car 1, can be controlled digitally. Source: www.maerklin.de The high-speed traffic with the newly constructed routes rich in tunnels makes a heavy demand on the railroads safety concepts. The tunnel rescue trains are an essential part of these concepts. These trains are designed to cope with the extraordinary situation of a burning train inside a tunnel. These trains have other tasks in addition to the actual transport of the rescue crews to the accident site and in addition to fighting the fire with the fire extinguishing equipment carried on the rescue train. The presence of smoke and the lack of oxygen in the tunnel mean that the airtight cars in the rescue train must have an independent source of power and air. Locomotive No. 1 is even equipped with a video camera and a thermal image camera. A passenger air lock with protection against smoke enables the evacuation of injured passengers. They are brought into the transport car after they have been attended to medically in the first aid car. If this car is full, the shuttle part of the train, Locomotive 2 and Transport Car 2, uncouple from the rest of the train, the main part of the latter, and proceed to the tunnel portal. The shuttle part then goes back to the main part of the train and couples to it, so that the connections are airtight. Trains of this type are stationed in Kornwestheim, Mannheim, Würzburg, Fulda, Kassel, and Hildesheim to ensure coverage of the newly constructed routes. Each rescue train is ready to go around the clock, as long as passenger trains are underway on the newly constructed routes. All of the equipment on these trains is kept at operating temperature for this purpose; working temperatures are maintained in the Transport and First Aid car, and the fire extinguishing materials are protected against frost.

Description

Tunnel Rescue Train Train Set.

German Railroad, Inc. (DB AG) class Rtz tunnel rescue train. Version as a single direction train with 2 locomotives and 5 different cars in the traffic red paint scheme of the DB Emergency Technology Network.

Locomotive road no. 714 015-5 has an mfx digital decoder, controlled high-efficiency propulsion, a warning light and auxiliary headlights. 2 axles powered. 4 traction tires. The headlights, warning light and auxiliary headlights will work in conventional operation and can be controlled digitally. Transport Car 2 has outboard mounted side sills and a reproduction of the entry area. It has side loading ramps that can be folded down. This car has built-in trackside lighting on the sides of the car, a warning light, and a Telex coupler at the end of the car in the direction of the first aid car for uncoupling the shuttle part of the train from the main part; all of these functions can be controlled digitally. The first aid car has outboard mounted side sills and a reproduction of the entry area. This car has built-in trackside lighting on the sides. The fire extinguishing car has platforms on both sides. It has built-in trackside lighting on the sides of the car. It also has removable roller pallets that can be rolled on the track. The equipment car has offset side sills. It has detailed reproductions of the emergency equipment. It also has built-in trackside lighting on the sides of the car. Transport Car 1 has outboard mounted side sills and a reproduction of the entry area. It has built-in trackside lighting on the sides of the car. The side loading ramp on this car can be folded down. Locomotive road no. 714 009-8 is non-powered and has an mfx digital decoder, headlights, a warning light, and auxiliary headlights. The headlights, warning light and auxiliary headlights will work in conventional operation and can be controlled digitally. The trackside lighting on the side of the first aid car, the fire extinguishing car, the equipment car, and transport car 1, can be controlled digitally.

Source: www.maerklin.de
The high-speed traffic with the newly constructed routes rich in tunnels makes a heavy demand on the railroads safety concepts. The tunnel rescue trains are an essential part of these concepts. These trains are designed to cope with the extraordinary situation of a burning train inside a tunnel. These trains have other tasks in addition to the actual transport of the rescue crews to the accident site and in addition to fighting the fire with the fire extinguishing equipment carried on the rescue train. The presence of smoke and the lack of oxygen in the tunnel mean that the airtight cars in the rescue train must have an independent source of power and air. Locomotive No. 1 is even equipped with a video camera and a thermal image camera. A passenger air lock with protection against smoke enables the evacuation of injured passengers. They are brought into the transport car after they have been attended to medically in the first aid car. If this car is full, the shuttle part of the train, Locomotive 2 and Transport Car 2, uncouple from the rest of the train, the main part of the latter, and proceed to the tunnel portal. The shuttle part then goes back to the main part of the train and couples to it, so that the connections are airtight. Trains of this type are stationed in Kornwestheim, Mannheim, Würzburg, Fulda, Kassel, and Hildesheim to ensure coverage of the newly constructed routes. Each rescue train is ready to go around the clock, as long as passenger trains are underway on the newly constructed routes. All of the equipment on these trains is kept at operating temperature for this purpose; working temperatures are maintained in the Transport and First Aid car, and the fire extinguishing materials are protected against frost.
