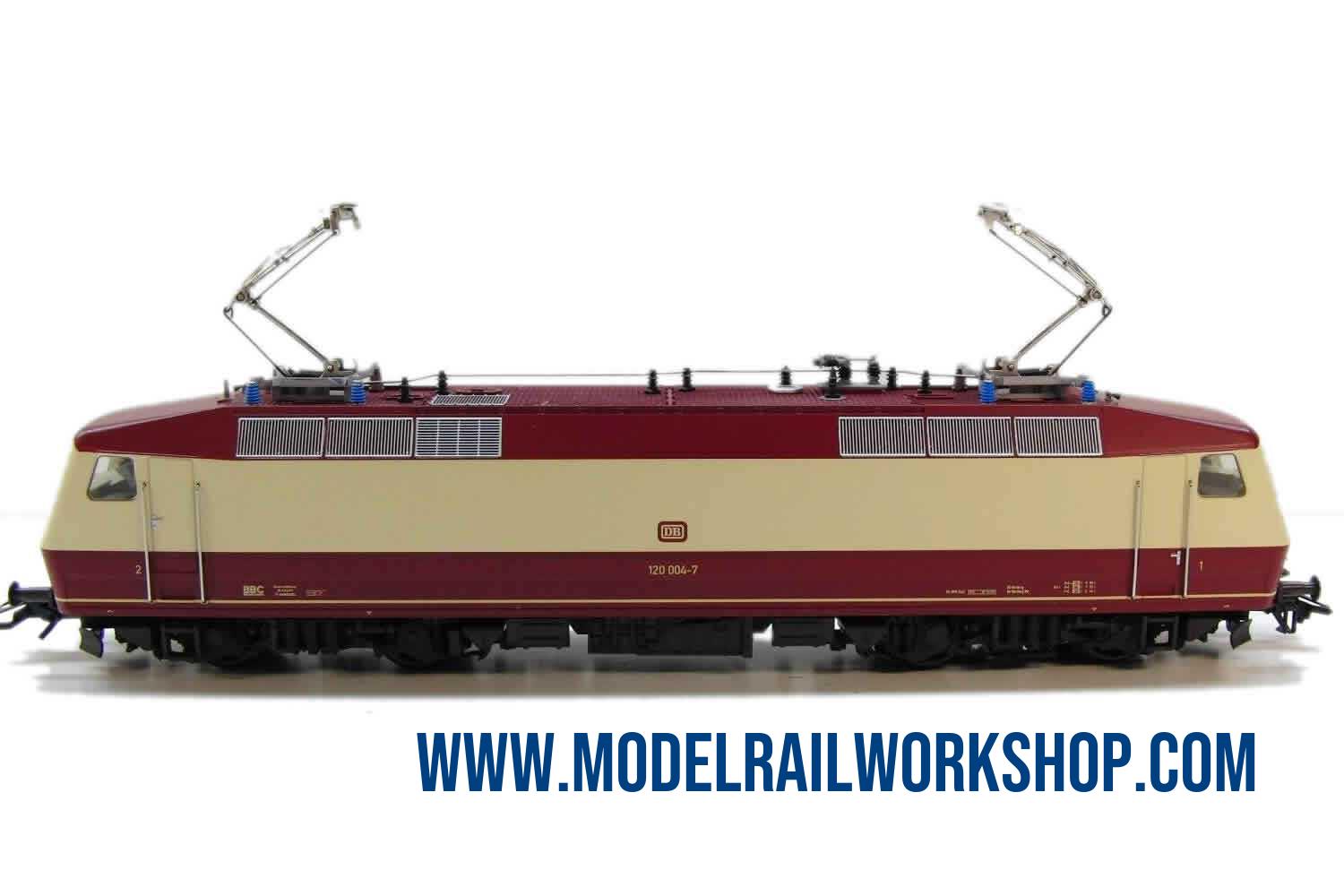

MÄRKLIN PRODUCT: 37537 Electric locomotive - class 120

AN EXTRACT FROM MODEL RAIL WORKSHOP - H0 MÄRKLIN DATABASE

Feel free to copy and use.....

KEY DATA
Product Name	37537 Electric locomotive - class 120
Object type	Locomotive-Electric
Product Line	Märklin
Era	1970-1990 (IV)
Manufactured years	2004-2005
Text on object
Number on object	120 004-7
Classification	BR 120
Type of housing	Metal
Length	22.1 cm
Technology	Digital 6090fx
Nationality	Germany
Railway company	- DB (Deutsche Bundesbahn 1949-1994)
Märklin RRP (Year)	269€ (2005)
Koll valuation (Year)	135€ (2022)
Url to Märklin	Klick to GoTo www.maerklin.de

Search for more products in the Database!

Description
Electric Locomotive. German Federal Railroad (DB) class 120.0 express general-purpose locomotive. Original version. Source: www.maerklin.de The Three-Phase Current Pioneer. The class 120 marked the technological change to three-phase current propulsion. This principle promised compact, motors without commutators and largely free of parts that would wear out, commutator rings, brushes, and mechanical contacts. Because a wide torque range and rpm range can be mastered with three-phase current technology, the performance specifications for this new development were broadly formulated. The class 120 was designed to pull 200 km/h or 125 mph fast InterCity trains and 5,400 metric ton freight trains and be equipped with push/pull controls and electric regenerative brakes. In 1977, the DB ordered five experimental units, which were thoroughly tested on test stands, on test runs, and in operational use. Startup, tractive effort, acceleration, running characteristics, braking power, power consumption, and stability were on the program. Comparison tests with other makes of locomotives as well as startup tests on the Lötschberg and Semmering grades confirmed the effectiveness of the technology. The speed record was 265 km/h or 165 mph. During the test phase, new developments were introduced, for example: microprocessors for faster monitoring and control. Components were constantly improved until all five units were technically at the same level in 1982 and were ready for regular production. During the several years of development the purchasing policy changed, however. Instead of all-round locomotives, special locomotives were once again preferred on the basis of common development platforms with many parts in common. Therefore, only the first production run of 60 units were purchased of the class 120. The five prototypes, to which the prototype of our model also belongs, continue to be used for test purposes.

Description

Electric Locomotive.

German Federal Railroad (DB) class 120.0 express general-purpose locomotive. Original version.

Source: www.maerklin.de
The Three-Phase Current Pioneer. The class 120 marked the technological change to three-phase current propulsion. This principle promised compact, motors without commutators and largely free of parts that would wear out, commutator rings, brushes, and mechanical contacts. Because a wide torque range and rpm range can be mastered with three-phase current technology, the performance specifications for this new development were broadly formulated. The class 120 was designed to pull 200 km/h or 125 mph fast InterCity trains and 5,400 metric ton freight trains and be equipped with push/pull controls and electric regenerative brakes. In 1977, the DB ordered five experimental units, which were thoroughly tested on test stands, on test runs, and in operational use. Startup, tractive effort, acceleration, running characteristics, braking power, power consumption, and stability were on the program. Comparison tests with other makes of locomotives as well as startup tests on the Lötschberg and Semmering grades confirmed the effectiveness of the technology. The speed record was 265 km/h or 165 mph. During the test phase, new developments were introduced, for example: microprocessors for faster monitoring and control. Components were constantly improved until all five units were technically at the same level in 1982 and were ready for regular production. During the several years of development the purchasing policy changed, however. Instead of all-round locomotives, special locomotives were once again preferred on the basis of common development platforms with many parts in common. Therefore, only the first production run of 60 units were purchased of the class 120. The five prototypes, to which the prototype of our model also belongs, continue to be used for test purposes.
