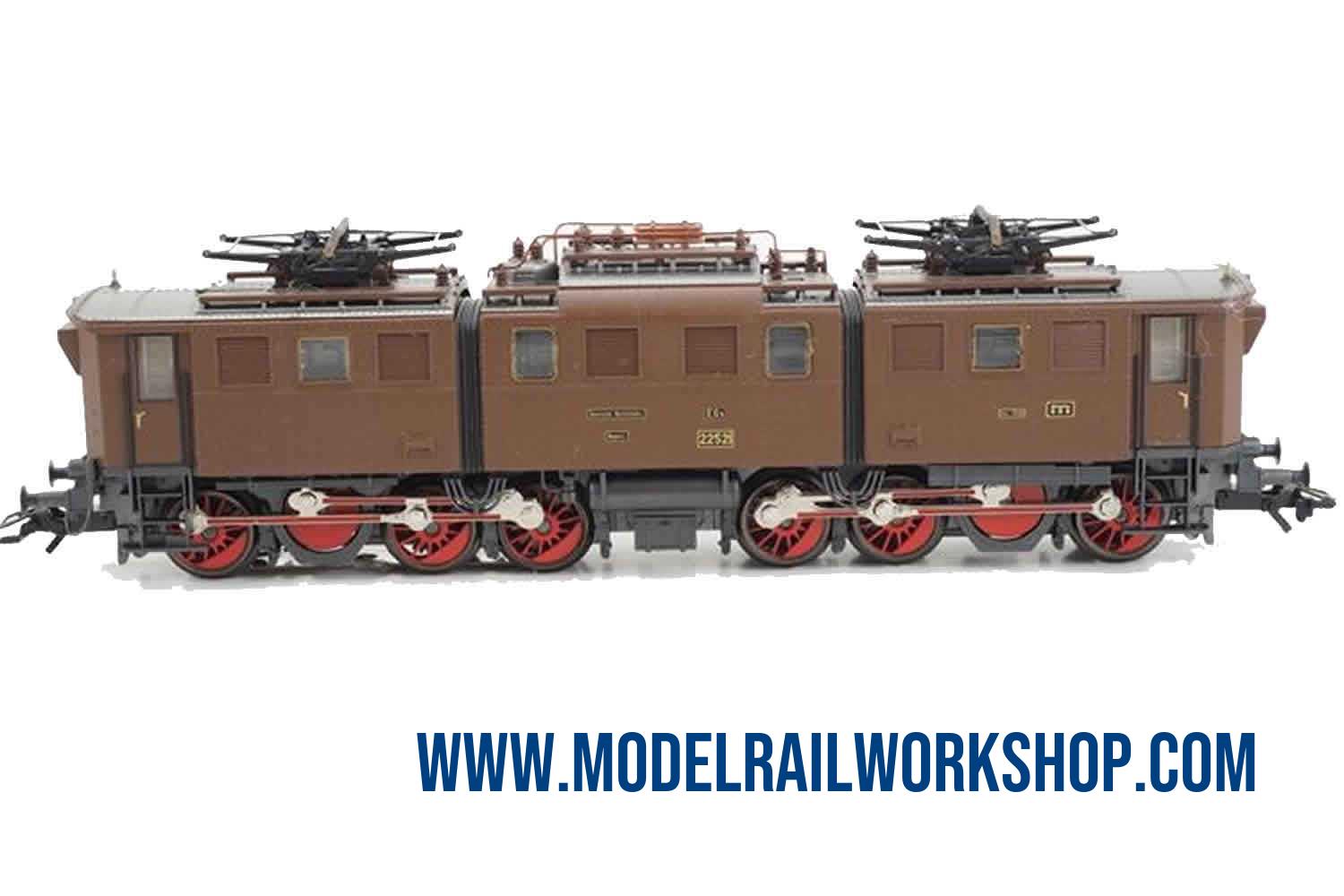

MÄRKLIN PRODUCT: 33292-98701 Electric locomotive - BR EG5 (E91)

AN EXTRACT FROM MODEL RAIL WORKSHOP - H0 MÄRKLIN DATABASE

Feel free to copy and use.....

KEY DATA
Product Name	33292-98701 Electric locomotive - BR EG5 (E91)
Märklin No	33292
Koll No	98701
Object type	Locomotive-Electric
Product Line	Märklin MHI
Era	1925-1945 (II)
Manufactured years	1998-1999
Text on object	-
Number on object	22 521
Classification	EG5
Type of housing	Metal
Length	19.9 cm
Technology	Delta
Nationality	Germany
Railway company	- DRG Deutsche Reichsbahn-Gesellschaft (1920/24-1937)
Limited Edition	1700

Description
Similar locomotive is märklin no:37292, but this locomotive is full digital with Digital6090 decoder. The locomotive is equipped with a 5-star high-power engine and is equipped with a Märklin Delta decoder. The decoder has a dip switch with eight switches with which the address can be set. There are also two potentiometers on the PCB, with which the maximum speed and the acceleration/deceleration delay can be set. The decoder has no additional functions other than switching the 3-point front lighting using the function key (F0), which switches with the direction of travel. The motor is in the front part of the locomotive, the decoder in the rear part. Before opening the locomotive, the screws of the relevant part must be unscrewed at the bottom of the locomotive to remove the (partial) cover.
