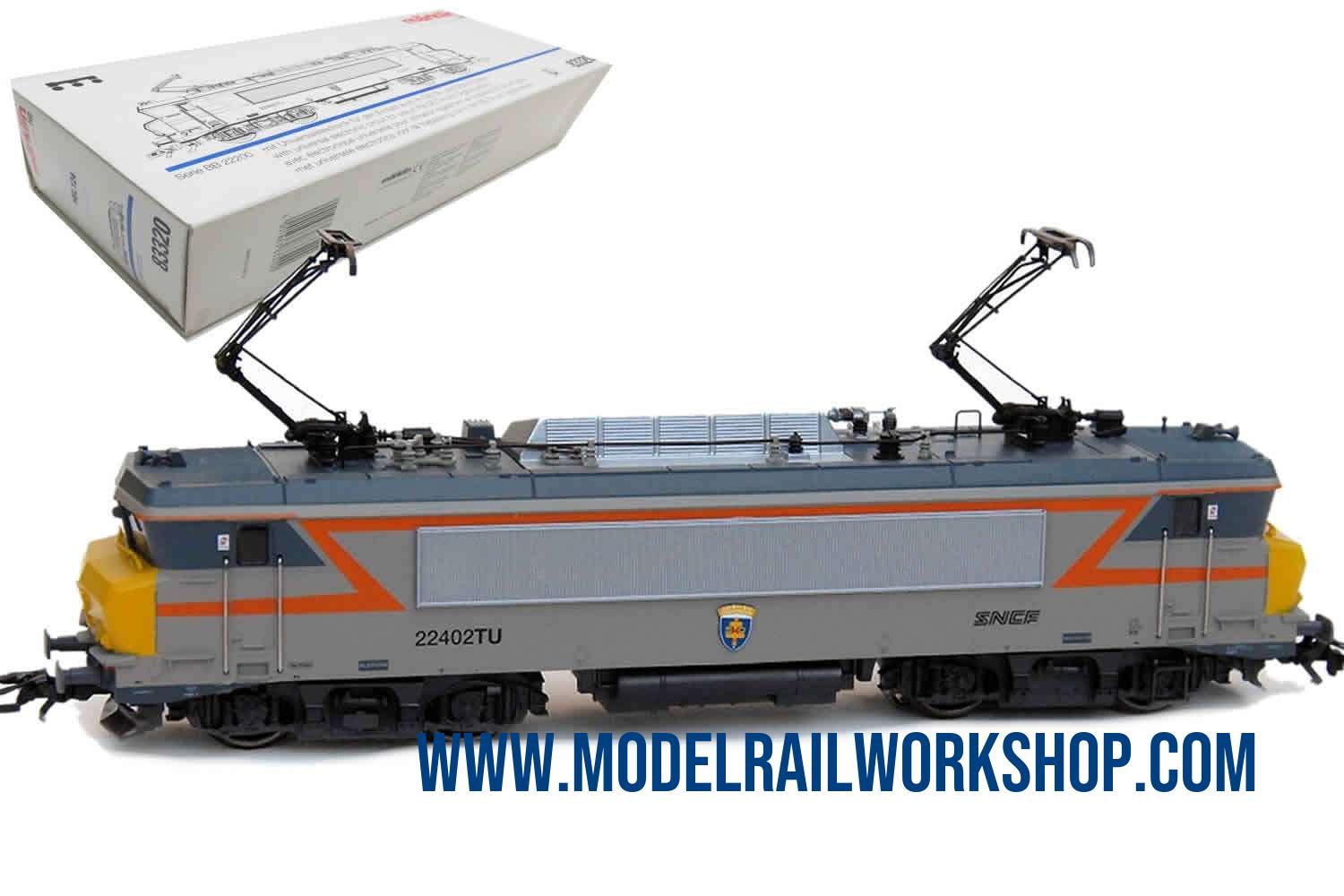

MÄRKLIN PRODUCT: 83320 Electric locomotive - BB 22200 - SNCF

AN EXTRACT FROM MODEL RAIL WORKSHOP - H0 MÄRKLIN DATABASE

Feel free to copy and use.....

KEY DATA
Product Name	83320 Electric locomotive - BB 22200 - SNCF
Object type	Locomotive-Electric
Product Line	Märklin Insider
Era	1990-2006 (V)
Manufactured years	1994-1994
Text on object	SNCF
Number on object	22402TU
Classification	BB 22200
Type of housing	Metal
Length	20,0 cm
Technology	Digital Delta
Nationality	France
Railway company	- SNCF - Société nationale des chemins de fer français

Description
The locomotives of the BB 22200 series are electric locomotives of the French railways Société Nationale des Chemins de Fer français (SNCF). The locomotives were built by Alstom in Belfort. The BB 22200 is a multi-system locomotive and is deployed on routes operating on 15,000 volts direct current or routes operating on 25,000 volts / 50 Hz alternating current. The locomotive is used for both passenger transport and heavy freight transport. The motor in this model is a Märklin Drum Collector Motor (DCM) with a field coil. The model is driven on two axles and has 4 anti-slip tires. The Märklin 6603 Delta decoder is factory set to address 24. The address can be adjusted using toggle switches on the decoder.
