MÄRKLIN PRODUCT: 3007 Steam locomotive with tender - BR06

AN EXTRACT FROM MODEL RAIL WORKSHOP - H0 MÄRKLIN DATABASE

Feel free to copy and use.....

KEY DATA

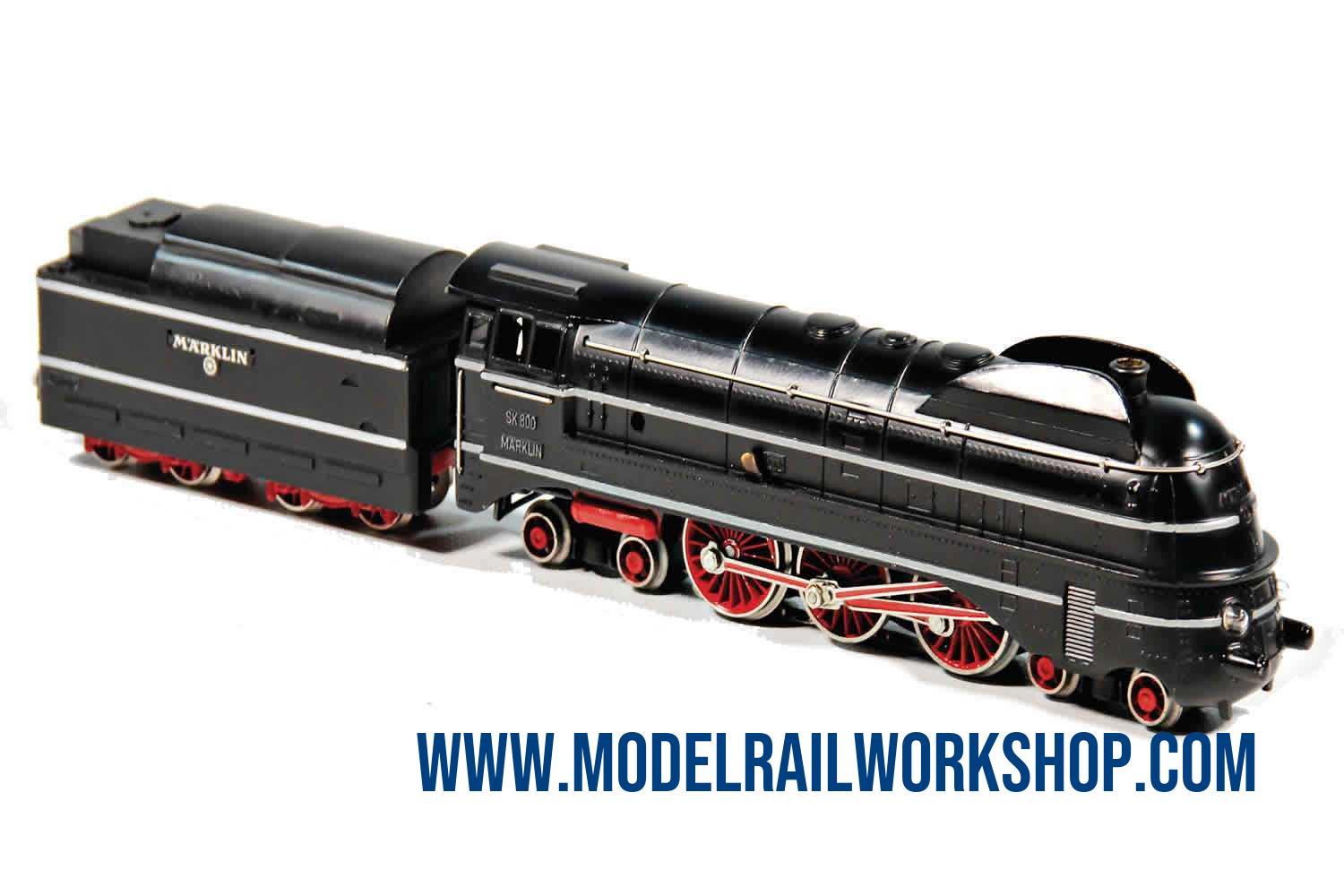

Product Name	3007 Steam locomotive with tender - BR06
Object type	Locomotive-Steam with tender
Product Line	Märklin
Era	1925-1945 (II)
Manufactured years	1939-1973
Text on object	Märklin
Number on object	SK800
Classification	BR06
Type of housing	Metal
Length	28,5 cm
Technology	Analog/Relay
Nationality	Germany
Railway company	- DRG Deutsche Reichsbahn-Gesellschaft (1920/24-1937)
Koll valuation (Year)	45€ (2022)

Search for more products in the Database!

Description
Märklin SK 800 / 3007 and most editions Edition: SK 800.1 1939 Locomotive with tender, 2C2 axle arrangement, BR 06 of the DRG, olive-green colour, cast chassis and body, 2 screw-in headlights, 4 domes, combustion chamber, screw-on carbon brushes covered with metal housing, casing cut to allow axle rotation, 1 mm handrail, flangeless centre axle wheels, solid guide and rear wheels, SK 800 and Märklin lettering on 13 mm plate, sans-serif front lettering. Covered cast tender, 4 axles, olive-green colour, Märklin lettering on plate, rear bellows, KK3 coupler. Edition: SK 800.2 K 1939 28.5 cm Edition: SK 800.3 1939 Märklin lettering on the tender highlighted. Arched tender deck. Edition: SK 800.4 1939 Grey with green and black paint or light blue with grey. Not officially documented. Edition: SK 800.5 1939/40 Black. Not officially documented. SK 800.6 1941 Green like SK 800.3 with BK4 coupling, brushes with thin metal housing. Edition: SK 800.7 1941/42 Black. Edition: SK 800.8 1945 Black, brushes without cover, without holes over brush recess Edition: SK 800.9 E Burnished, with/without holes for brush caps. SK 800.10 1946/47 Handrails highlighted in the casing, not as appliqués. Edition: SK 800.11 unknown Edition: SK 800.12 N 1947 Front lamps plugged into base, air tanks instead of firebox, brushes with closed bronze valve, right-hand gear switch, 0.6 mm handrail, connector from tender to train without function, red profiled connecting rods, spoked auxiliary wheels, cast iron tender bogies Edition: SK 800.13 1948 Without electrical connector between locomotive and tender. Edition: SK 800.14 1949 3 domes, without control space on the body, SK 800 label on 7 mm plate. Edition: SK 800.15 1950/51 Tender with BK5 coupler Edition: SK 800.16 1951/53 Brushes with closed cover, handrails ending in brush cover, painted firebox and figures of the driver and the fireman. Tender without bellows, with/without Märklin lettering. Edition: SK 800.17 1954/58 Since 1957 number 3007. Tie rings, 1956 tender with wider coupling, VK 6 coupling. Edition: SK 800.18 E 1954/58 Pale green. Units repaired based on pre-war models. Edition: SK 800.19 E 1959 Pale green. Larger MÄRKLIN front lettering in Antiqua sans-serif. Edition: SK 800.20 1959 Black, Front sign MÄRKLIN in Antiqua larger sans-serif. Edition: SK 800.21 1972 Included in set 3907 similar to SK800.20, Manual switch, but no slot on right, flanged center axle wheels. Edition: SK 800.22 1973 Included in set 3907 without slot.

Description

Märklin SK 800 / 3007 and most editions

Edition: SK 800.1	1939
Locomotive with tender, 2C2 axle arrangement, BR 06 of the DRG, olive-green colour, cast chassis and body, 2 screw-in headlights, 4 domes, combustion chamber, screw-on carbon brushes covered with metal housing, casing cut to allow axle rotation, 1 mm handrail, flangeless centre axle wheels, solid guide and rear wheels, SK 800 and Märklin lettering on 13 mm plate, sans-serif front lettering. Covered cast tender, 4 axles, olive-green colour, Märklin lettering on plate, rear bellows, KK3 coupler.

Edition: SK 800.2 K	1939	28.5 cm

Edition: SK 800.3	1939
Märklin lettering on the tender highlighted. Arched tender deck.

Edition: SK 800.4	1939
Grey with green and black paint or light blue with grey. Not officially documented.

Edition: SK 800.5	1939/40
Black. Not officially documented.

SK 800.6	1941
Green like SK 800.3 with BK4 coupling, brushes with thin metal housing.

Edition: SK 800.7	1941/42	Black.

Edition: SK 800.8	1945
Black, brushes without cover, without holes over brush recess

Edition: SK 800.9 E	Burnished, with/without holes for brush caps.

SK 800.10	1946/47
Handrails highlighted in the casing, not as appliqués.

Edition: SK 800.11	unknown

Edition: SK 800.12 N	1947
Front lamps plugged into base, air tanks instead of firebox, brushes with closed bronze valve, right-hand gear switch, 0.6 mm handrail, connector from tender to train without function, red profiled connecting rods, spoked auxiliary wheels, cast iron tender bogies

Edition: SK 800.13	1948
Without electrical connector between locomotive and tender.

Edition: SK 800.14	1949	3 domes, without control space on the body, SK 800 label on 7 mm plate.

Edition: SK 800.15	1950/51	Tender with BK5 coupler

Edition: SK 800.16	1951/53
Brushes with closed cover, handrails ending in brush cover, painted firebox and figures of the driver and the fireman. Tender without bellows, with/without Märklin lettering.

Edition: SK 800.17	1954/58
Since 1957 number 3007. Tie rings, 1956 tender with wider coupling, VK 6 coupling.

Edition: SK 800.18 E	1954/58
Pale green. Units repaired based on pre-war models.

Edition: SK 800.19 E	1959
Pale green. Larger MÄRKLIN front lettering in Antiqua sans-serif.

Edition: SK 800.20	1959
Black, Front sign MÄRKLIN in Antiqua larger sans-serif.

Edition: SK 800.21	1972
Included in set 3907 similar to SK800.20, Manual switch, but no slot on right, flanged center axle wheels.

Edition: SK 800.22	1973	Included in set 3907 without slot.
